Aircraft & Wing drawings

Raven 2XS Aircraft Drawings – $395.00 – Updated drawings available now

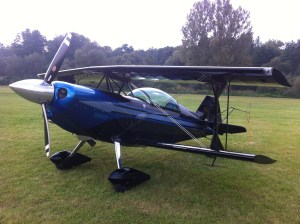

We’ve taken knowledge accumulated over years of experience to design and construct our own two-seat Raven 2XS. This aircraft is a streamlined high performance fully aerobatic biplane powered by a 6 cylinder Lycoming engine. It incorporates the best design features of many different aerobatic aircraft in addition to innovations that have come from our own experience, resulting in a truly unique and exciting high performance aircraft package. The drawings also include builder’s notes.

Wing Drawings – $165.00 – Updated drawings available now

We also offer a set of detailed 2XS wing and wing related drawings to retrofit to most S2 and Eagle styles of Biplanes. These drawings also include builders notes.

Important: Contact us for the latest drawings revisions as the non updated drawings are considered Non Airworthy.

Click on this link for construction detail photos – 2XS Detail photos


By purchasing or obtaining any aircraft, or aircraft related parts or drawings, diagrams purchased/obtained direct, through agents or privately, including previously used parts, or asking and/or receiving any advice, suggestions and opinions verbal or written, or accessing and using any photos, educational or other information either directly, or through all other public sources including the web, forums, and the Raven Aircraft website, you agree to the following:

You do not and will not hold Raven Aircraft, Weldtech Industries or Robert Halas, liable for any, or all aircraft and aircraft related parts, drawings, suggestions and opinions, verbal or written.

You agree that you are 100% responsible to ensure that any and all parts purchased or aircraft and parts built from any drawings, references, suggestions and opinions are airworthy.

You agree that any and all parts, drawings, suggestions or opinions from Raven Aircraft, Weldtech Industries and Robert Halas are provided, without warranty of any kind either expressed or implied.  Raven Aircraft, Weldtech Industries, and Robert Halas, and do not warrant, guarantee, or make any representations regarding the use of or results from the use of any parts, drawings, suggestions and opinion’s in terms of correctness, accuracy, reliability, completeness, fitness for a particular purpose, or otherwise.

Raven Aircraft, Weldtech Industries, and Robert Halas shall not be liable for any loss or injury arising out of or caused in whole or in part by the acts or omissions of, Raven Aircraft, Weldtech Industries and Robert Halas, their personnel, or their sources of information whether negligent or otherwise.

In no event shall Raven Aircraft, Weldtech Industries and Robert Halas be liable for any special, indirect, punitive, or consequential damages with respect to this Agreement.

You hereby hold harmless: Robert Halas, Raven Aircraft, Weldtech Industries, and any employees from any liability or damages to or resulting from any aircraft, occupants, or bystanders related to building or operation of any aircraft or parts.

You agree that any aircraft or parts shall be constructed, maintained, and operated only in strict compliance of appropriate local aviation administration regulations governing the construction, maintenance, and operation of aircraft in their respective Country and Aviation Laws.

All subsequent buyers, heirs, successors or assigns of any complete aircraft, projects, and parts are also bound by all terms of this agreement. In no event shall Raven Aircraft, Weldtech Industries, Robert Halas,  or any employees be liable for any consequential, special, incidental, or indirect damages of any kind arising out of the use of these parts, related parts, drawings, suggestions, advice or opinions.

Raven 2XS SpecificationsLength 19′ 4″
Wing span 19′ 2″
Height 6′ 6″
Wing area 119.4 sq ft
Fuel Capacity 37 gal
Empty weight 1180 lbs
Gross weight 1780 lbs
Performance 2XS (cp. Pitts S2C*)Top speed, level 200 mph (196mph)
Cruise speed 188 mph (172 mph)
Stall speed 60 mph (64 mph)
Roll rate 330 deg/sec (300deg/sec)
Rate of climb 3300 fpm (2900 fpm)
*as published by Aviat.Raven3
